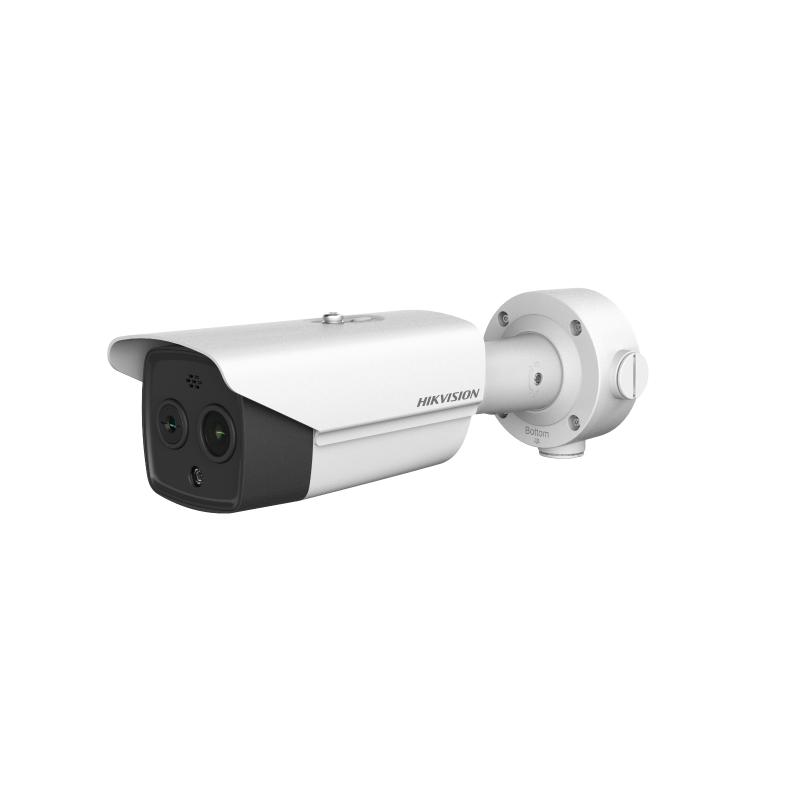

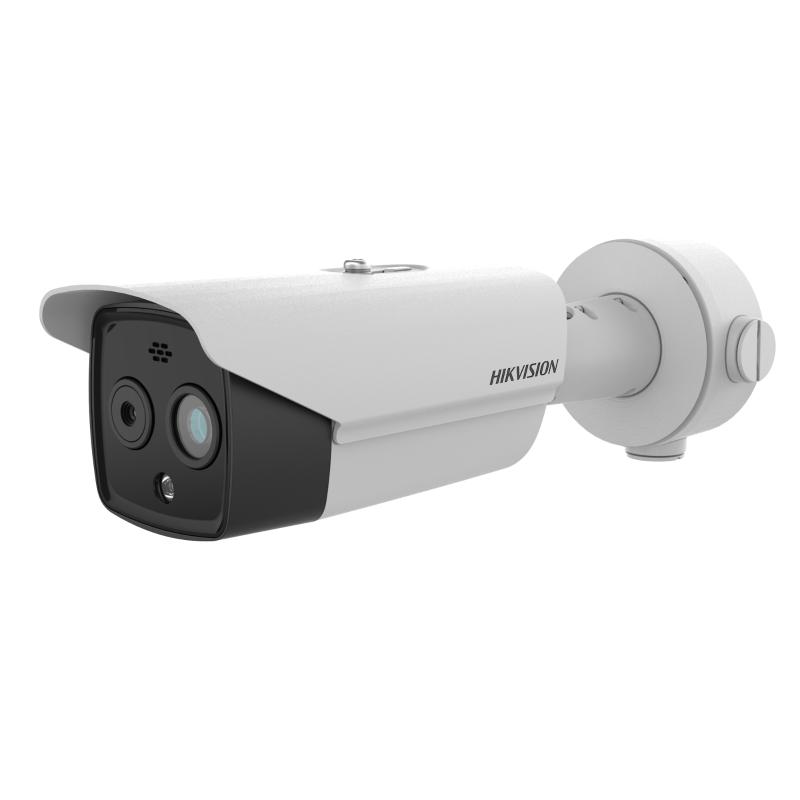

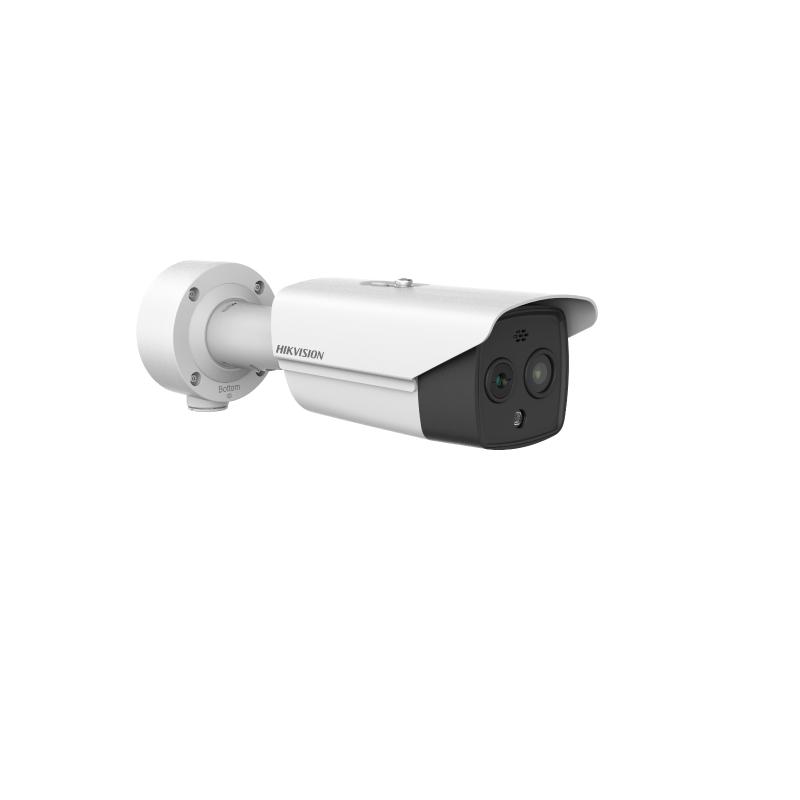

Cámara bullet de red de termografía de doble espectro

Cámara bullet de red de termografía de doble espectro

• Thermal Module
• Image SensorVanadium Oxide Uncooled Focal Plane Arrays
• Resolution256 x 192
• Pixel Pitch12 μm
• Spectral Range8 μm to 14 μm
• NETD≤ 40 mK (@25° C,F# = 1.0)
• Focal Length6.9 mm
• IFOV1.74 mrad
• ApertureF1.0
• Field of View24.9° × 18.7° (H × V)
• Min. Focusing Distance1 m
• Digital Zoom×2, ×4

• Optical Module
• Image Sensor1/2.7″ Progressive Scan CMOS
• Resolution2688 × 1520
• Min. Illumination0.0089Lux @(F1.6,AGC ON) ,0 Lux with IR
• Field of View53.0° ×28.0° (H × V)
• Focal Length6.4 mm
• Shutter Speed1 s to 1/100,000 s
• White BalanceMWB/AWB1/Locked WB/Fluorescent Lamp/Incandescent Lamp/Warm Light Lamp/Natural Light
• Day & Night ModeIR Cut Filter with Auto Switch
• WDR120 dB
• ApertureF 1.6

• Image Effect
• Bi-spectrum Image FusionDisplay the details of optical channel on thermal channel
• Picture in PictureDisplay partial image of thermal channel on the full screen of optical channel
• Target ColorationYes. Supported in white hot and black hot mode.

• Illuminator
• IR DistanceUp to 30 m
• IR Intensity and AngleAutomatically adjusted

• Audible and Visual Alarm
• White Light RangeUp to 30 m
• Visual AlarmYes. White light alarm with adjustable flashing frequencies
• Audio alarm

  Yes, for three types of audible alarm (VCA and Temperature Exception)

  3 preset voice alerts (one for each)

  6 importable user-defined voice alerts (6 options shared in the two types)

• Smart Function
• VCA4 VCA rule types (line crossing, intrusion, region entrance, and region exiting), up to 8 VCA rules in total.
• Temperature Measurement3 temperature measurement rule types, 21 rules in total (10 points, 10 areas, and 1 line)
• Temperature Range-20°C to 550°C (-4°F to 1022°F);
• Temperature AccuracyMax (±2°C, ±2 %)
• General FunctionFire detection, smoke detection, smoking detection, sun-reflection filter, forklift alarm filter

• Video and Audio
• Main Stream

  Thermal:

  25 fps (1280 × 720, 704 × 576, 640 × 512, 320 × 240)

  Optical:

  50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)

  60Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)

• Sub-stream

  Thermal:

  25 fps (704 × 576, 640 × 512, 320 × 240)

  Optical:

  50 Hz: 25 fps (704 × 576, 352 × 288)

  60 Hz: 30 fps (704 × 480, 352 × 240)

• Video Compression

  Main Stream: H.265/H.264

  Sub-Stream: H.265/H.264/MJPEG

• Audio CompressionG.722.1/G.711ulaw/G.711alaw/MP2L2/G.726/PCM

• Network
• ProtocolsIPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE,TP,Bonjour,SFTP,SRTPP,TLS
• Network StorageMicroSD/SDHC/SDXC card (up to 256 G) local storage, NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR)
• APIISAPI, HIKVISION SDK,ISUP, and third-party management platform, Open Network Video Interface,ONVIF (Profile S, Profile G)
• Simultaneous Live ViewUp to 20 channels
• User/Host levelUp to 32 users, 3 levels: Administrator, Operator, User
• SecurityUser authentication (ID and password), MAC address binding, HTTPS encryption, IEEE 802.1x access control, IP address filtering
• ClientiVMS-4200, Hik-Connect

• Interface
• Alarm Input2, alarm input (0-5 VDC)
• Alarm Output2, alarm output (alarm response actions configurable)
• Alarm ActionSD recording/Relay output/Smart capture/FTP upload/Email linkage
• Audio Input

  1, 3.5 mm Mic in/Line in interface

  Line input: 2 – 2.4 V [p-p], output impedance: 1 KΩ ± 10%

• Audio OutputLinear level, impedance: 600 Ω
• Communication Interface

  1, RJ45 10 M/100 M Self-adaptive Ethernet interface.

  1, RS-485 interface (half duplex)

• Analog Output1.0V [p-p]/75Ω, PAL/NTSC/BNC

• General
• Menu Language32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
• Power Supply

  24 VAC ± 25%, 12 VDC ± 25%, two-core terminal block

  PoE (802.3af, class 3)

• Power Consumption

  24 VDC ± 25%: 0.8 A, Max.8.5 W

  12 VDC ± 25%: 0.7 A, Max.8.5 W

  PoE (802.3af, class 3): 36 V to 57 V, 0.24 A to 0.15 A, Max. 8.5 W

• Working Temperature/Humidity

  Temperature: -40°C to 65°C (-40°F to 149°F)

  Humidity: 95% or less

• Protection Level

  IP67 Standard

  TVS 4000V lightning protection, surge protection, voltage transient protection

  IK10-rated housing

• Dimensions321.3 mm × 106.1 mm × 107.0 mm (12.65″ × 4.18″ × 4.21″)
• Weight1550 g (3.41 lb)

• Detection Range Table/Smart Function Range
• VCA Range for Humans56 m
• VCA Range for Vehicles168 m
