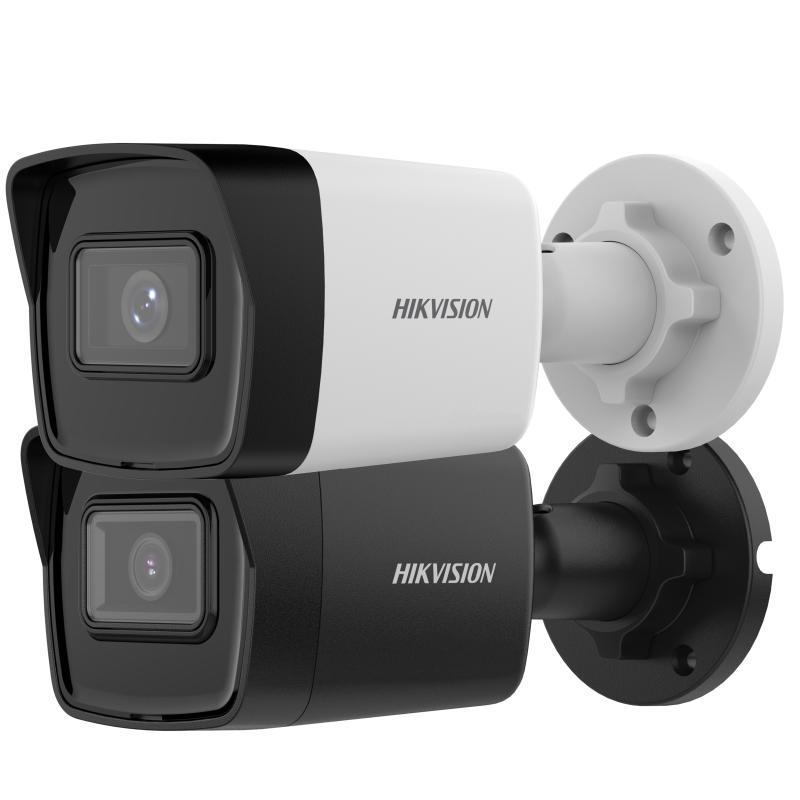

Cámara de red bullet fija MD 2.0 de 4 MP

Cámara de red bullet fija MD 2.0 de 4 MP

• Cámara
• Sensor de imagen1/3″ Progressive Scan CMOS
• Max. Resolución2560 × 1440
• Iluminación mínimaColor: 0.01 Lux @ (F2.0, AGC ON), B/W: 0 Lux with IR
• Tiempo de obturación1/3 s to 1/100,000 s
• Día y NocheIR cut filter
• Ajuste de ánguloPan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°

• Lente
• LenteFixed focal lens, 2.8 and 4 mm optional
• Focal Length & FOV

  2.8 mm, horizontal FOV 99°, vertical FOV 55°, diagonal FOV 116°

  4 mm, horizontal FOV 76°, vertical FOV 41°, diagonal FOV 90°

• Montura del lenteM12
• Iris TypeFixed
• AperturaF2.0

• DORI
• DORI

  2.8 mm, D: 59 m, O: 23 m, R: 11 m, I: 5 m

  4 mm, D: 79 m, O: 31 m, R: 15 m, I: 7 m

• Iluminador
• Tipo de luz suplementariaIR
• Rango de luz suplementariaUp to 30 m
• Luz de suplemento inteligenteYes
• IR Wavelength850 nm

• Vídeo
• Main stream

  50 Hz:

  20 fps (2560 × 1440)

  25 fps (1920 × 1080, 1280 × 720)

  60 Hz:

  20 fps (2560 × 1440)

  24 fps (1920 × 1080, 1280 × 720)

• Sub-stream

  50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)

  60 Hz: 24 fps (1280 × 720, 640 × 480, 640 × 360)

• Compresión de video

  Main stream: H.265+/H.265/H.264+/H.264

  Sub-stream: H.265/H.264/MJPEG

• Vídeo bitrate32 Kbps to 8 Mbps
• Tipo H.264Baseline Profile/Main Profile/High Profile
• Tipo H.265Main Profile
• Bit Rate ControlCBR/VBR
• Región de interés (ROI)1 fixed region for main stream

• Audio
• Tipo de audio-U: Mono sound
• Filtro de ruido ambiental-U: Yes
• Frecuencia de muestreo de audio-U: 8 kHz/16 kHz
• Compresión de audio-U: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC
• Velocidad de bits de audio-U: 64 Kbps (G.711 ulaw)/64 Kbps (G.711 alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)

• Red
• SeguridadPassword protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)
• Vista en vivo simultáneaUp to 6 channels
• APIOpen Network Video Interface (Profile S, Profile T, Profile G (only -F model supports)), ISAPI, SDK
• ProtocolosTCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP
• Usuario/operador

  Up to 32 users

  3 levels: administrator, operator, and user

• ClienteiVMS-4200, Hik-Connect
• Navegador web

  Plug-in required live view: IE 10, IE 11

  Local service: Chrome 57.0+, Firefox 52.0+

• Imagen
• Wide Dynamic Range (WDR)120 dB
• SNR≥ 52 dB
• Interruptor día/nocheDay, Night, Auto, Schedule
• Mejora de la imagenBLC, HLC, 3D DNR
• Configuración de imagenRotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser
• Máscara de privacidad4 programmable polygon privacy masks

• Interfaz
• Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
• On-Board Storage-F: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB
• Micrófono incorporado-U: Yes
• Reset Key-F: Yes

• Evento
• Evento BásicoMotion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception
• LinkageUpload to FTP/memory card (-F), send email, notify surveillance center, trigger recording (-F), trigger capture

• General
• alimentación

  12 VDC ± 25%, 0.4 A, max. 5 W, Ø5.5 mm coaxial power plug

  PoE: 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.15 A, max. 6.5 W

• MaterialMetal & Plastic
• Dimensión170.8 mm × 66 mm × 69.1 mm (6.7″ × 2.6″ × 2.7″)
• Dimensión del paquete216 mm × 121 mm × 118 mm (8.5″ × 4.8″ × 4.6″)
• Approx. 270 g (0.6 lb.)
• Con peso del paqueteApprox. 481 g (1.1 lb.)
• Condiciones de almacenaje-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Condiciones de inicio y funcionamiento-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• IdiomaEnglish, Ukrainian
• Función generalHeartbeat, anti-banding, mirror, password protection, password reset via email

• Certificaciones
• EMC

  FCC: 47 CFR Part 15, Subpart B

  CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014

  RCM: AS/NZS CISPR 32: 2015

  IC: ICES-003: Issue 7

  KC: KN32: 2015, KN35: 2015

• Seguridad

  UL: UL 62368-1

  CB: IEC 62368-1: 2014+A11

  CE-LVD: EN 62368-1: 2014/A11: 2017

  BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005

• Ambiente

  CE-RoHS: 2011/65/EU

  WEEE: 2012/19/EU

  Reach: Regulation (EC) No 1907/2006

• ProtecciónIP67: IEC 60529-2013
